SenseCAP Solar Node P1

SenseCAP Solar Node P1 and P1-Pro specifications

• Main controller –  XIAO nRF52840 Plus
  • SoC – Nordic nRF52840 Arm Cortex-M4F microcontroller @ up to 64 MHz with 1 MB flash, 256 KB SRAM, Bluetooth 5.0, NFC, 802.15.4 connectivity
  • Storage – 2 MB onboard Flash
  • USB – USB-C port for power and programming
• Wireless
  • Wio-SX1262 Module – Semtech SX1262, TXOP=22dBm@862-930MHz)
    • Output Power – Up to +22 dBm
    • Frequency Range – 862 MHz to 930 MHz
    • Modulations – LoRa, (G)FSK, Long Range FHSS
    • Sensitivity – Down to -148 dBm
  • GPS Module – XIAO L76K (optional on SenseCAP Solar Node P1, pre-installed on the P1-Pro model)
    • GPS/GLONASS/Galileo support
    • GPS L1 C/A: 1575.42MHz
    • GLONASS L1: 1602MHz
    • BeiDou B1: 1561.098MHz
  • Antennas
    • Rod-shaped rubber 2dBi LoRa antenna for 868 915MHz
    • GNSS antenna
    • Bluetooth 5.0 antenna
• USB – USB Type-C port for power and debugging/flashing
• Expansion –  4-pin Grove port for I2C, GPIO, or UART modules, e.g. to connect sensors for environment monitoring (temperature, humidity, air quality, etc.).
• Misc

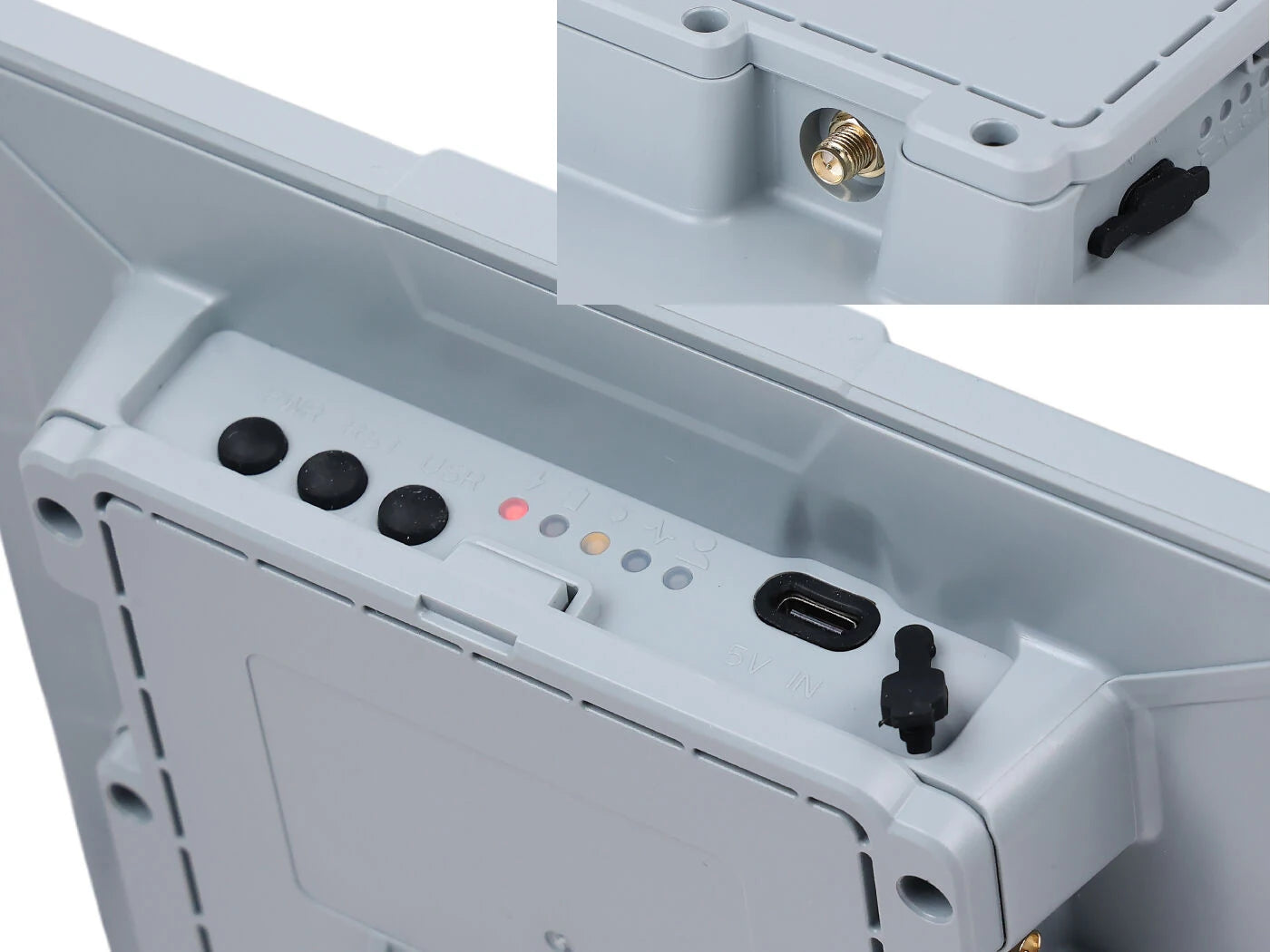

  • Power, Reset, and user buttons
  • Charging LEDs, solar panel status LED, Mesh heartbeat LED, and user LED
• Power Supply
  • 5V via USB Type-C port
  • 5W solar panel

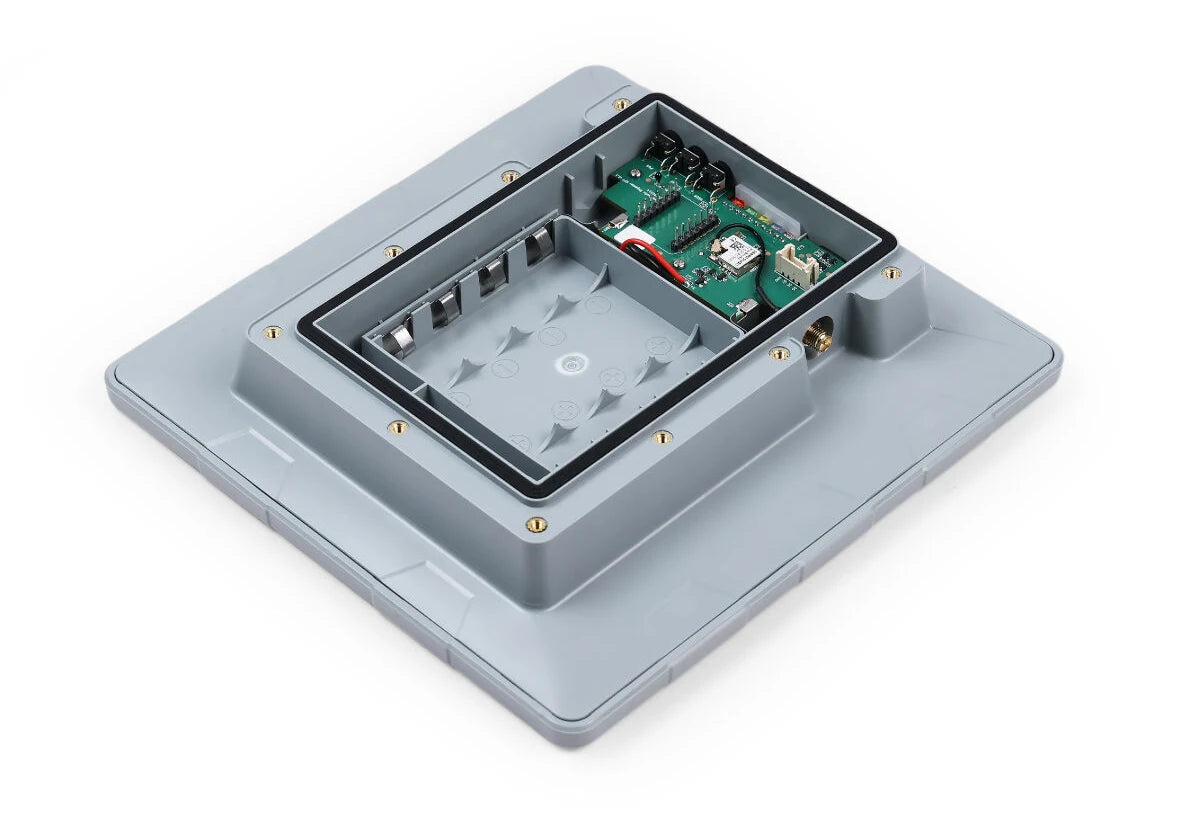

  • 4x 18650 lithium batteries (3,350mAh each); SenseCAP Solar Note P1-Pro only, need to be purchase separately for the Node P1 model.
  • Support USB Type-C and solar charging

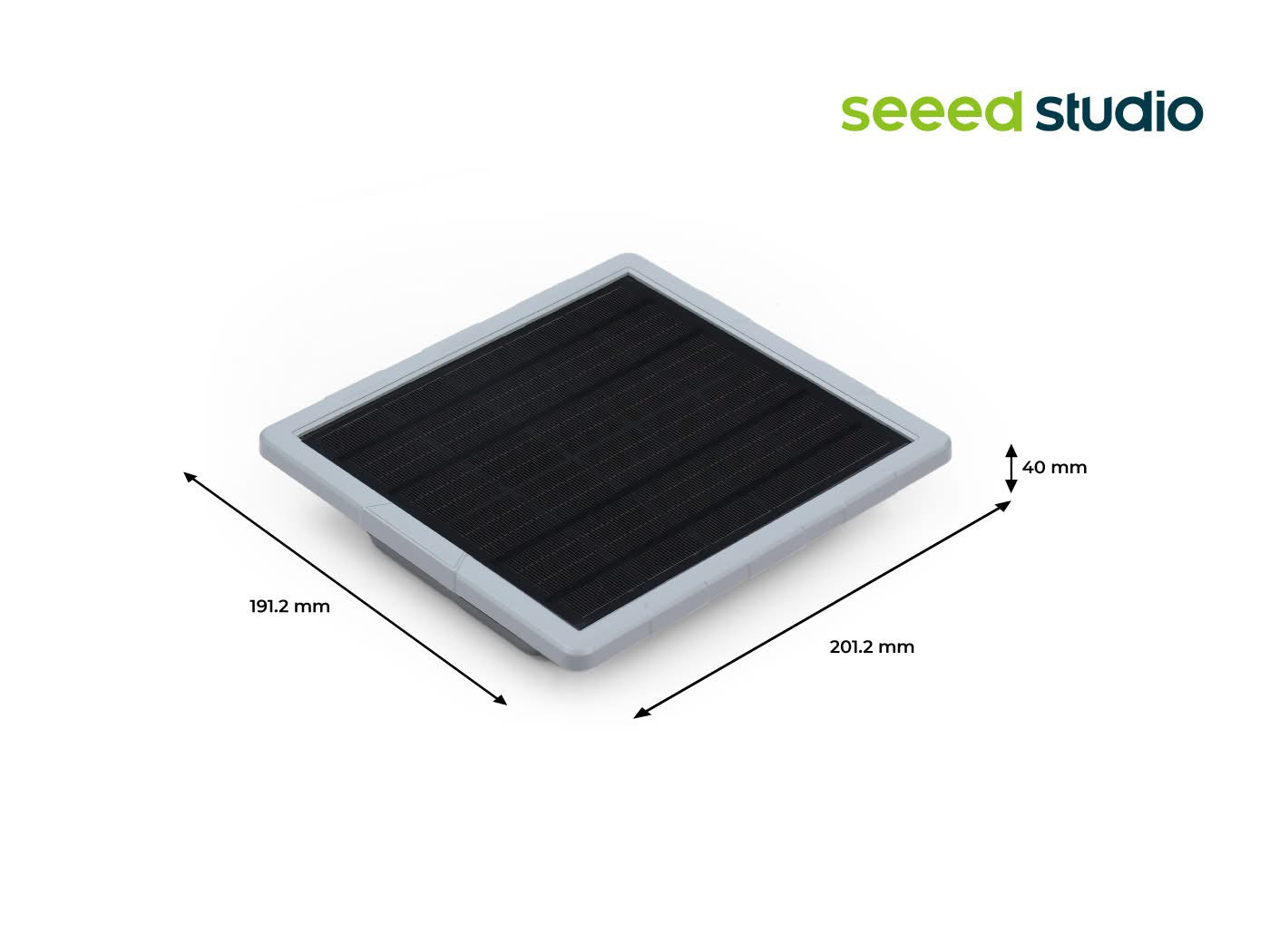

• Dimensions – 201.2 x 191.2 x 42.1 mm
• Temperature Range
  • Discharge – -40 to 60°C
  • Charge – 0 to 50°C
• IP Rating – Not specified
• Certifications –  FCC, CE

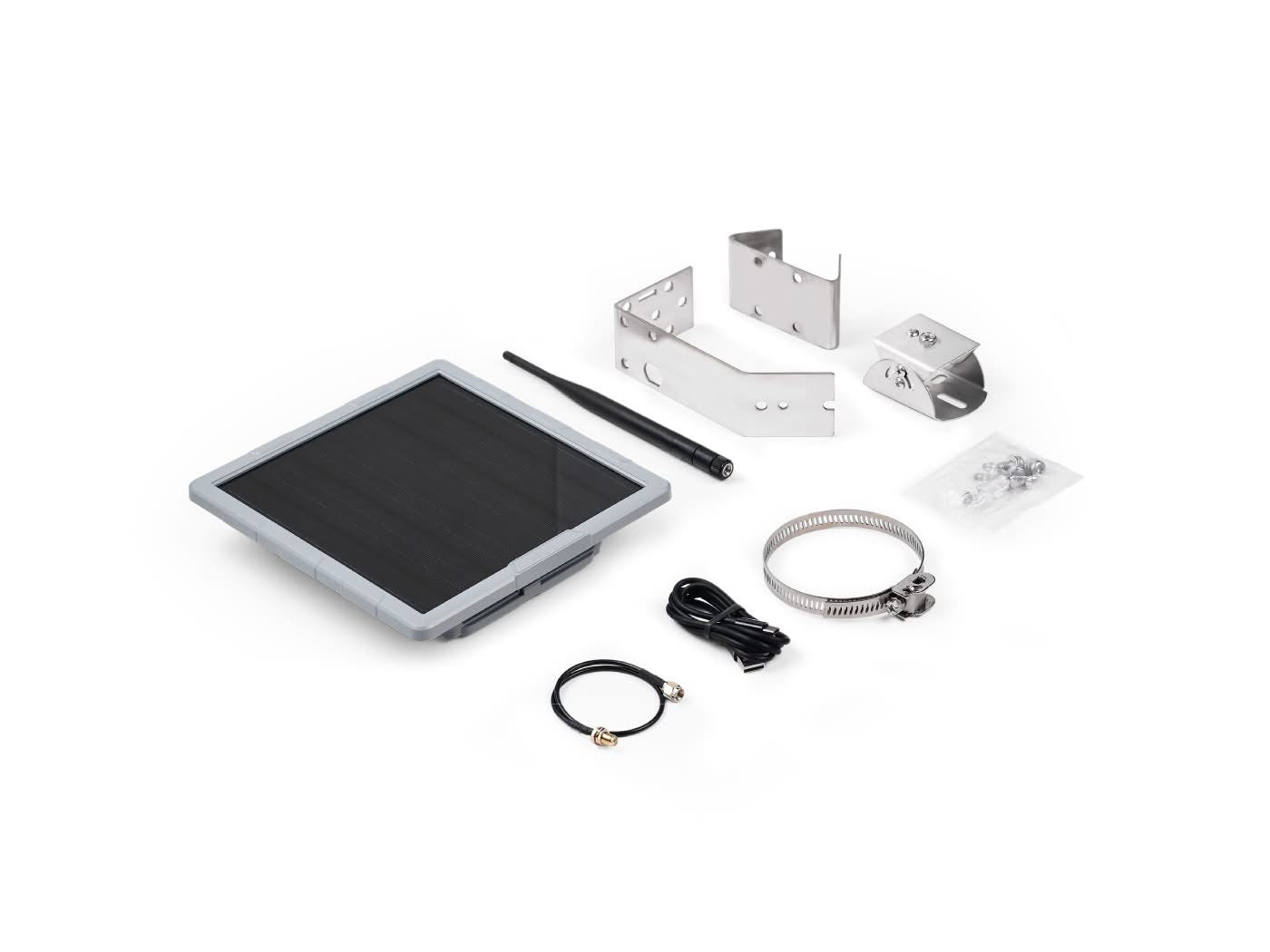

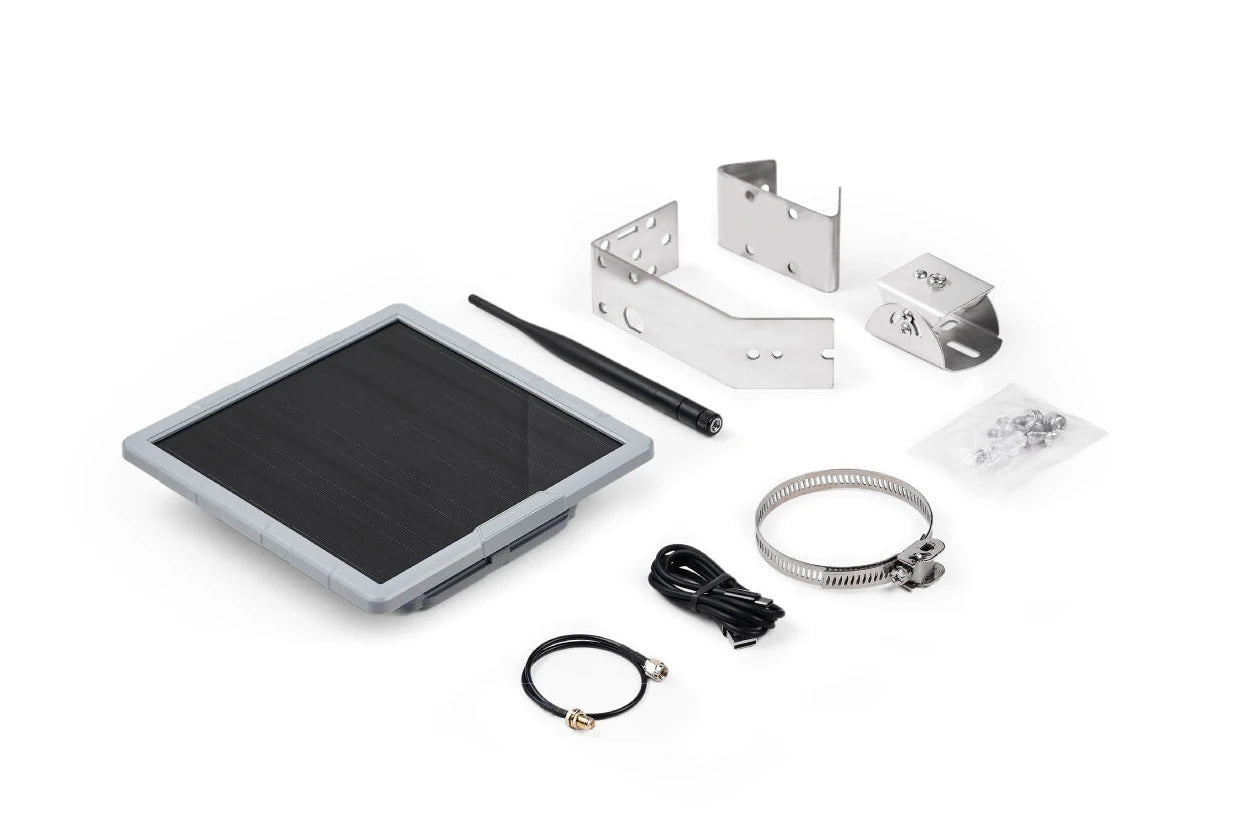

The Meshtastic repeaters ship with mounting brackets for wall or pole (70 to 100mm) mounting with screws, a LoRa antenna, an RP-SMA male to RP-SMA female cable, a USB Type-C cable, and a user manual. There’s no online documentation, so Seeed Studio might assume people know how to use Meshtastic, or the documentation is not ready just yet.

Feature

Note:

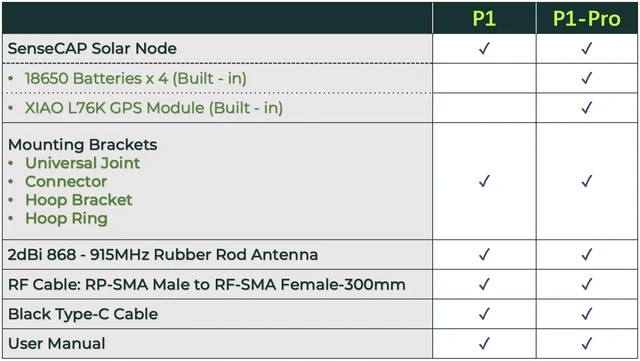

SenseCAP Solar Node P1 is cost-effective and lacks the XIAO L76K GPS module and four 18650 batteries. But users can buy and install them independently.

For the model with positioning and batteries, opt for the SenseCAP Solar Node P1-Pro.

🌱Integrated with a 5W solar panel, and supports external batteries (which need to be provided by users themselves).

🌱The device comes pre-installed with Meshtastic firmware at the factory. It can be seamlessly integrated into the Meshtastic ecosystem.

🌱Compatible with the Grove ecosystem, and supports plug-and-play of sensors such as temperature and humidity sensors, light sensors, etc.

🌱It is suitable for long-term outdoor use.

🌱Supports 8 to 9KM Transmission in open areas. It can be used as an outdoor node or repeater, easily expanding the Mesh network and enhancing network coverage.Specification
