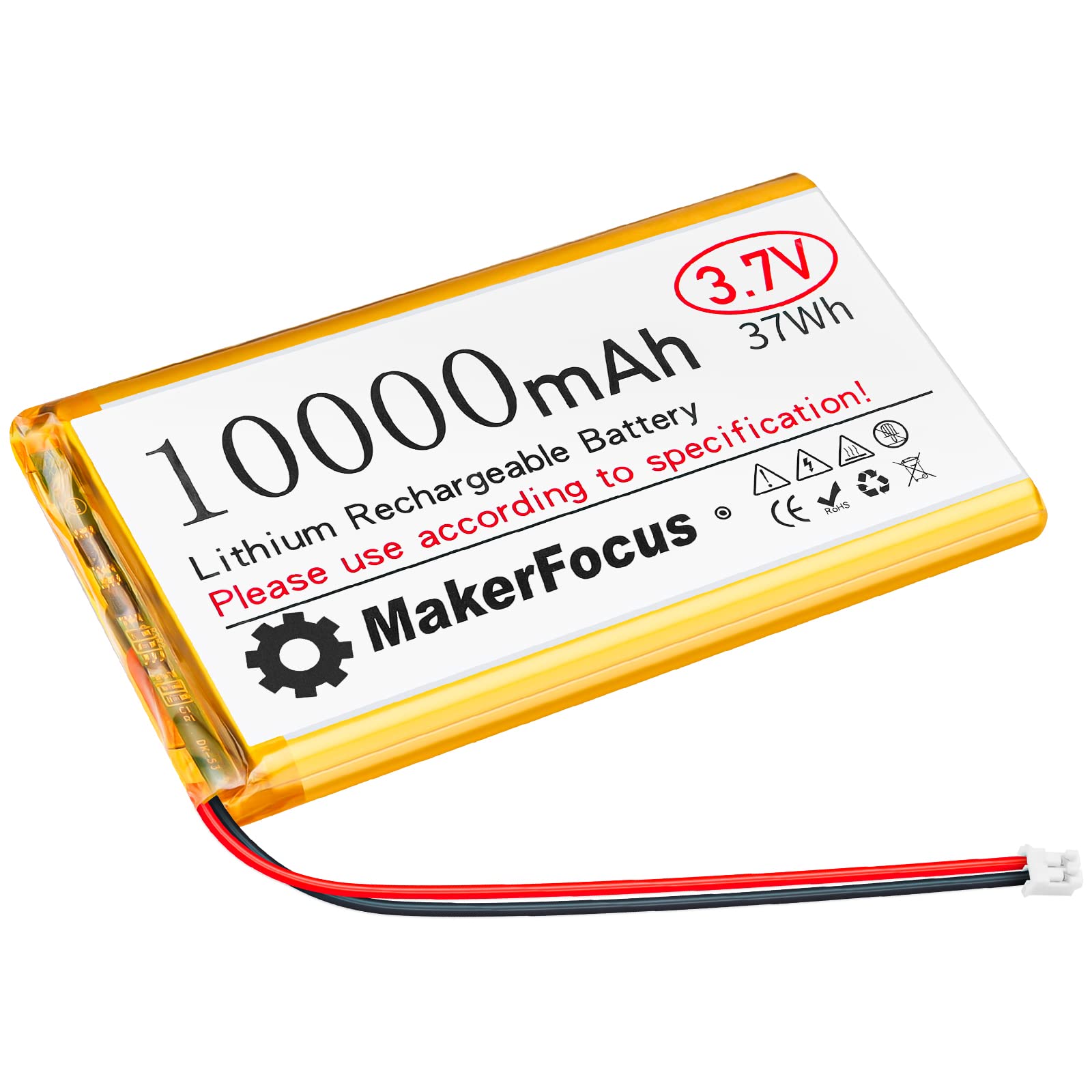

MakerFocus 1pcs 3.7V 10000mAh Lithium Polymer Rechargeable Battery with Integrated Protective Board, Insulation Coating and PH2.0 Plug for Raspberry Pi Battery Pack UPS and Other

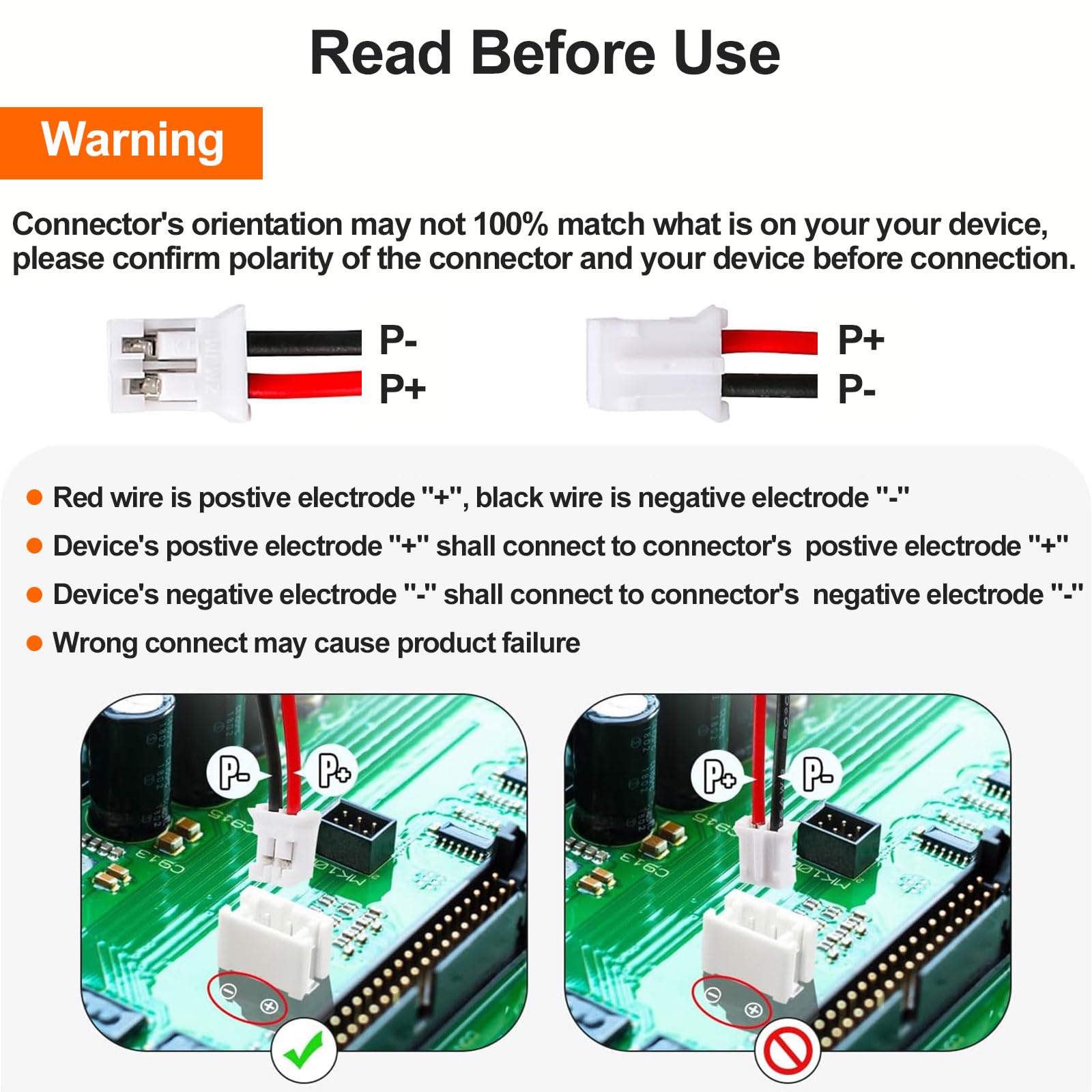

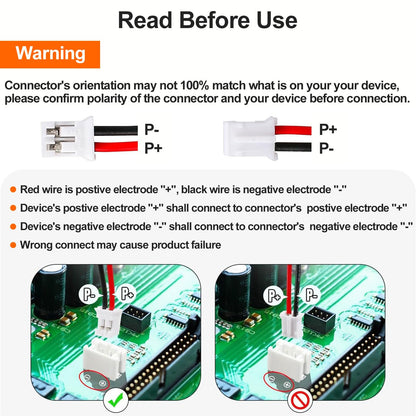

Reversed Polarity: These 10000mAh battery is designed with special reverse polarity (positive and negative terminals are in opposite positions to those of conventional batteries), so please be sure to check the direction of the device interface before installation to avoid damage due to the opposite connection. Please recognize the “+” and “-” markings on the battery side when installing
Standard Charging Method: Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≦0.05C

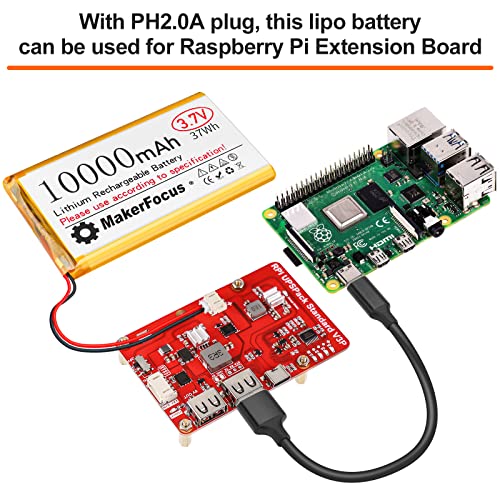

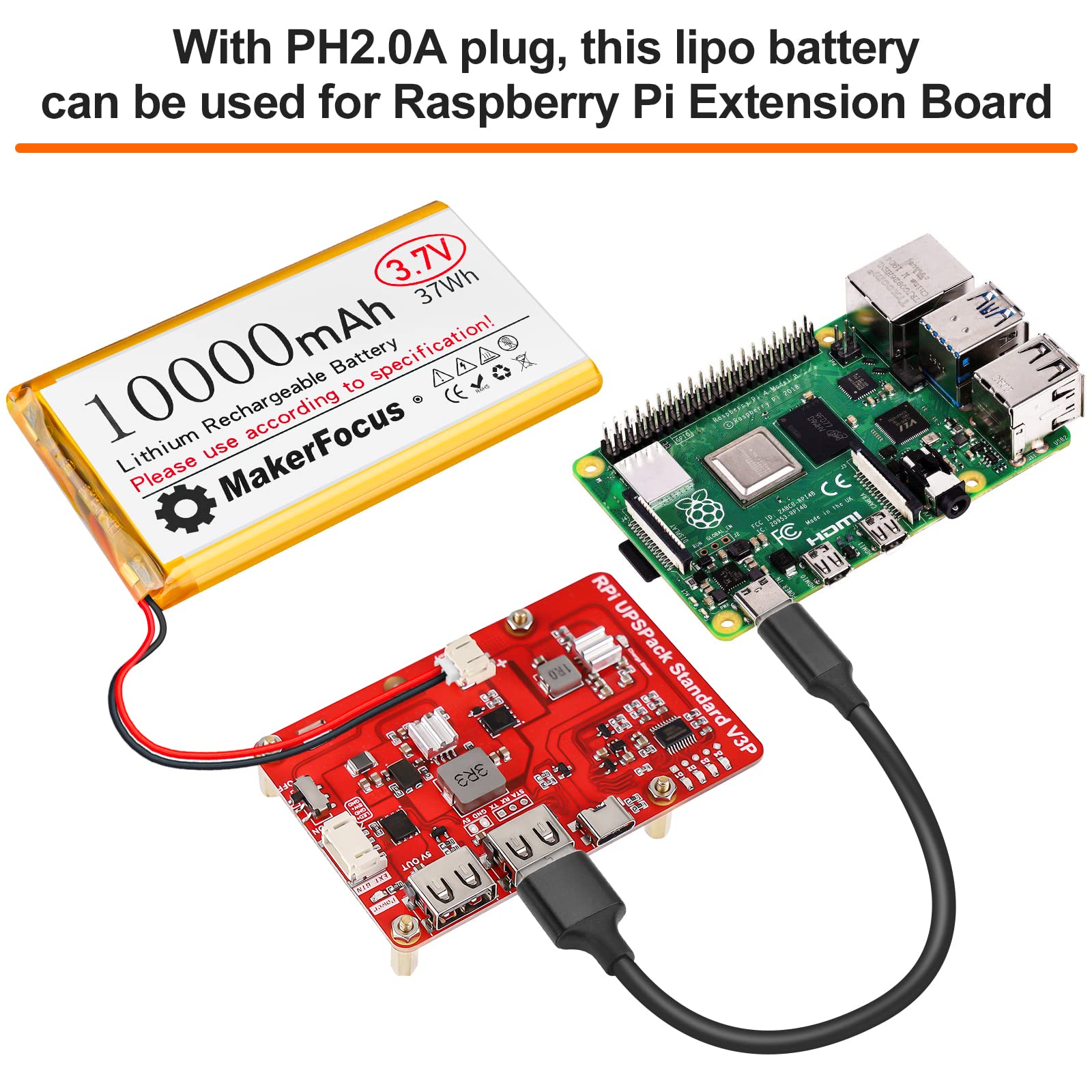

Application: 1S 10000mAh lipo batteries can be used for Raspberry Pi UPS board whose plug PH2.0

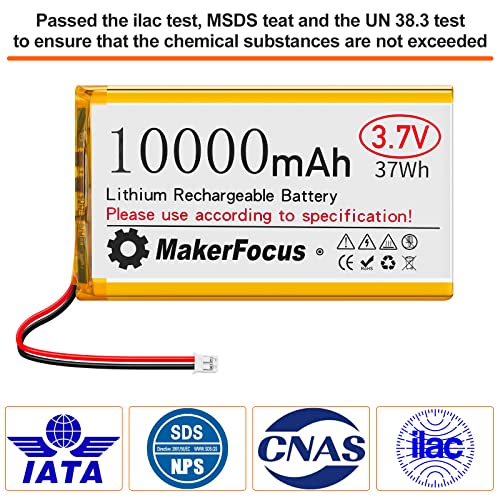

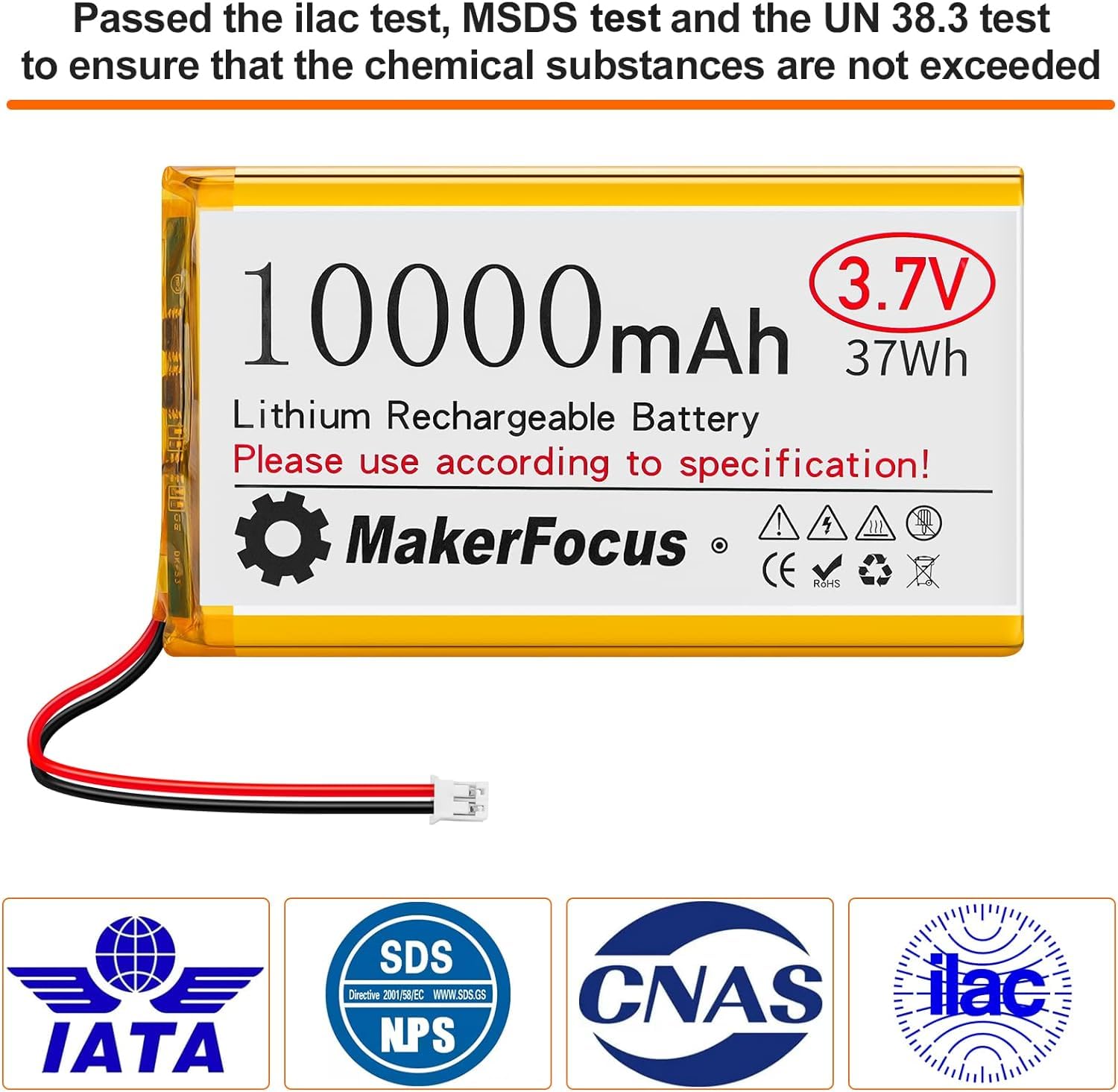

Safety: Passed the MSDS test and the UN 38.3 test recognized by the United Nations to ensure that the chemical substances are not exceeded, and the use is safe and reliable
Note: The maximum operating current of this 3.7V 10000mAh lipo battery is only about 3A, can not be used for unmanned aerial vehicles, model aircraft or power tools and other products that require high current
This 3.7V Lipo Battery 10000mAh Lithium Rechargeable Battery 's Connector is PH2.0, it can be used for Raspberry Pi UPS board whose plug is PH2.0 and other project equipment with PH2.0 port.
Specification:

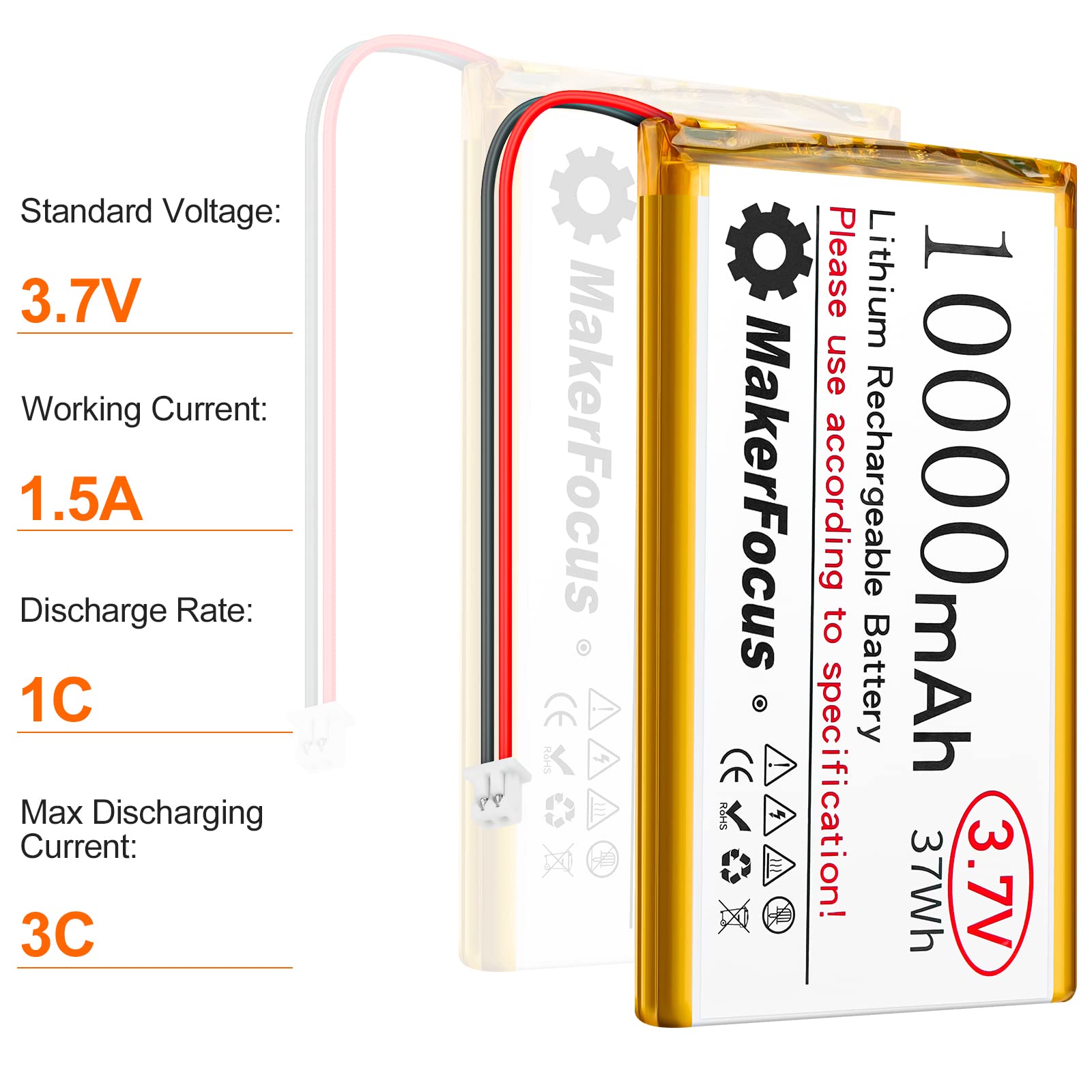

Standard Voltage: 3.7V
Capacity: 10000mAh
Max Working Current: 3A

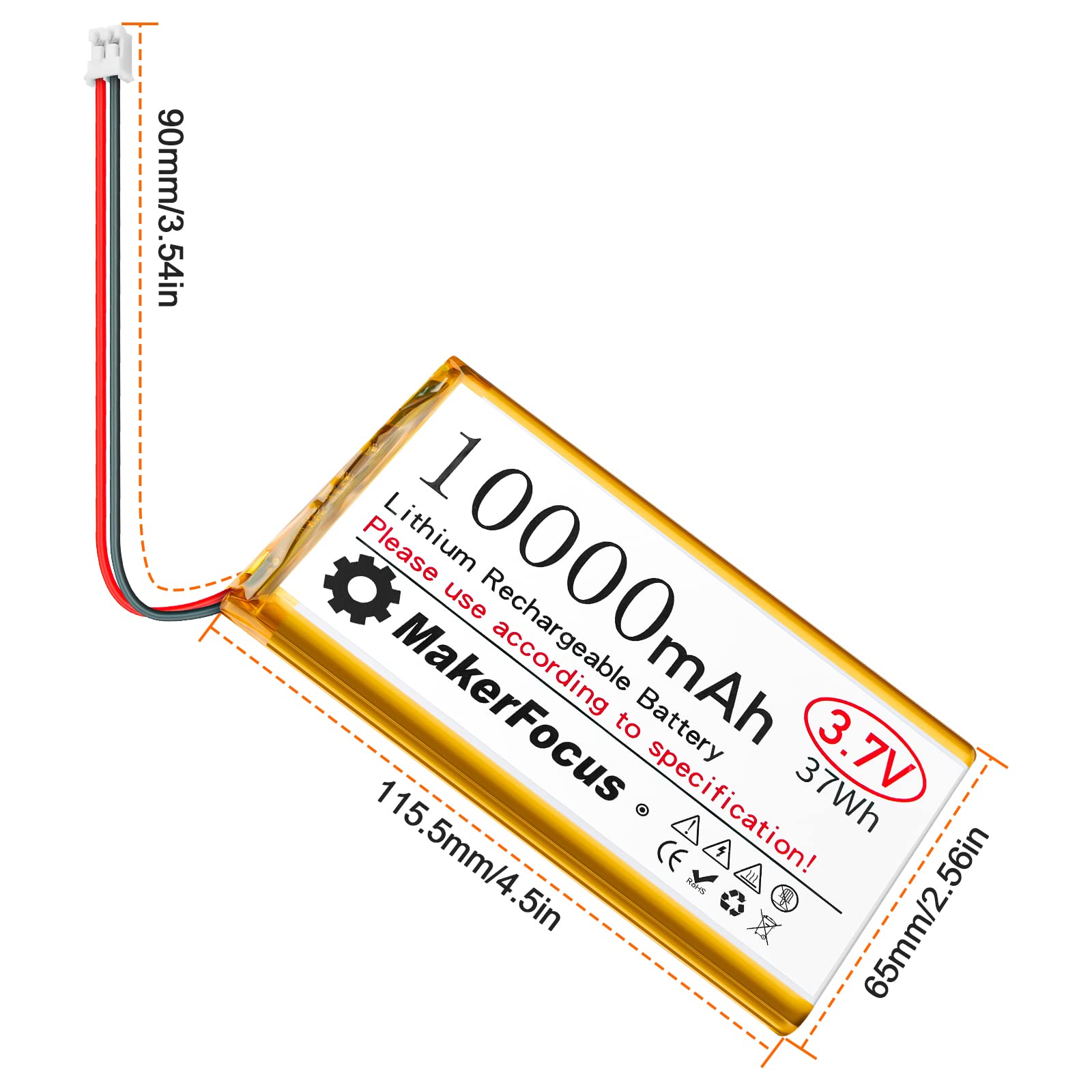

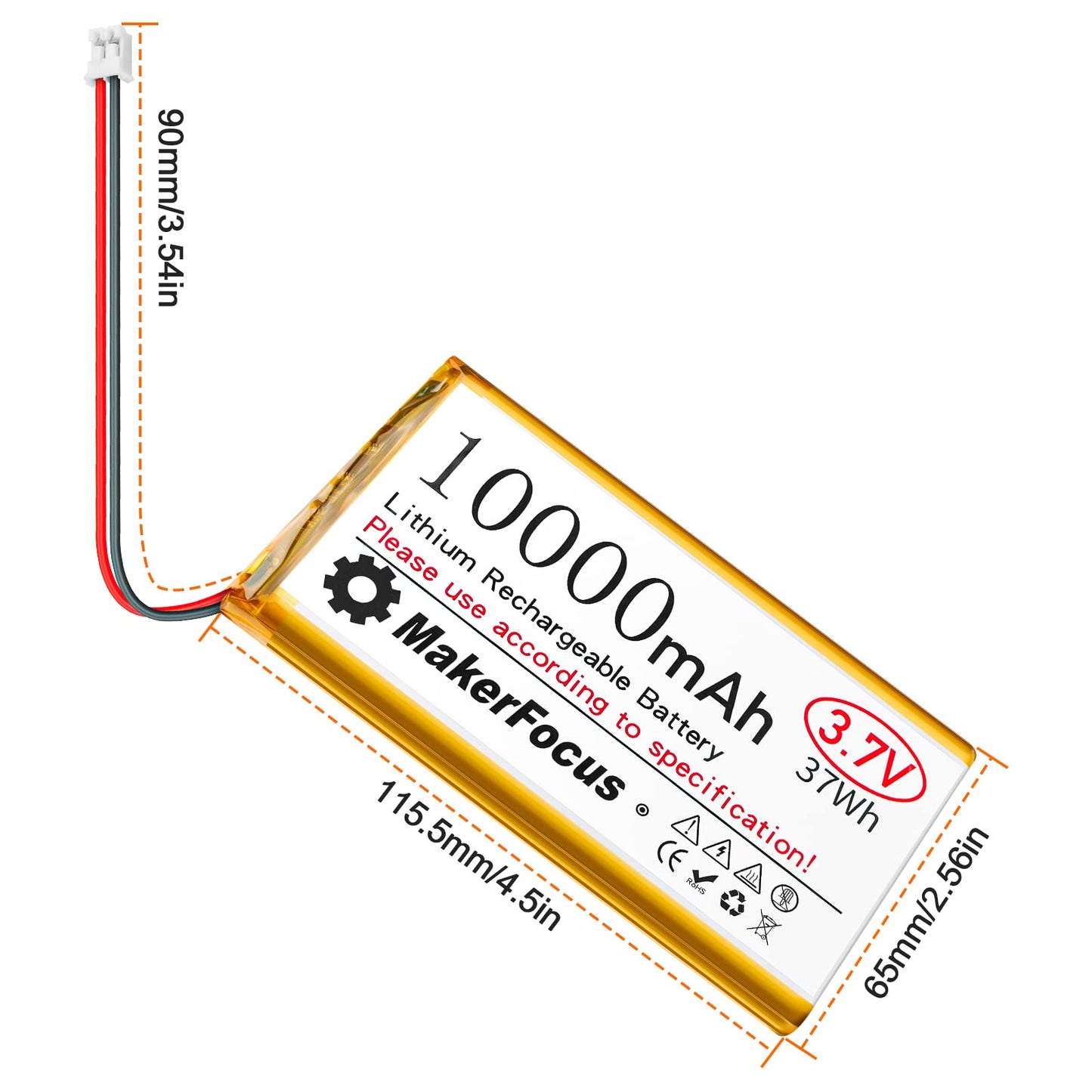

Dimensions(±2mm): 115 * 65 *8.8mm / 4.52 * 2.56 * 0.35inch(L*W*H)

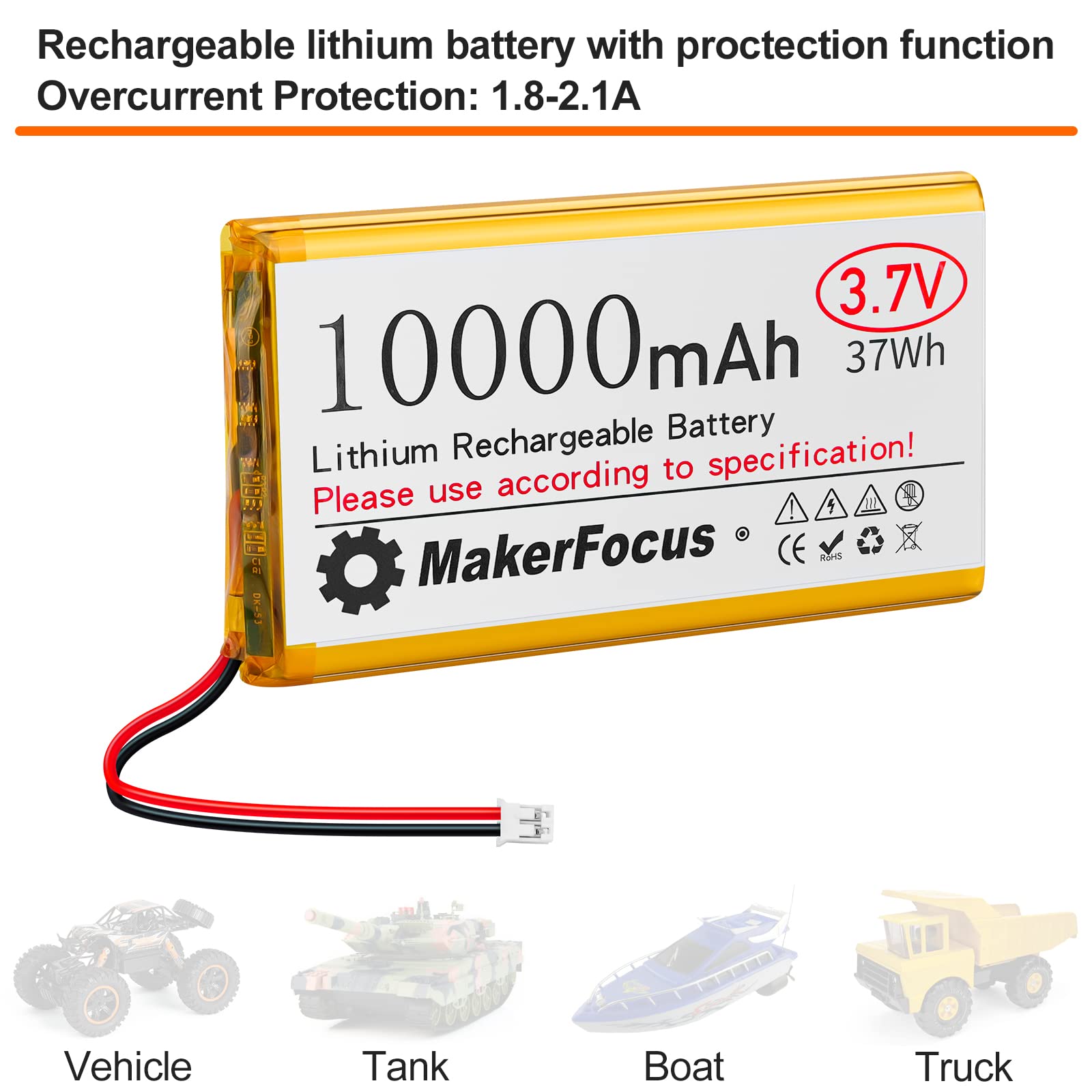

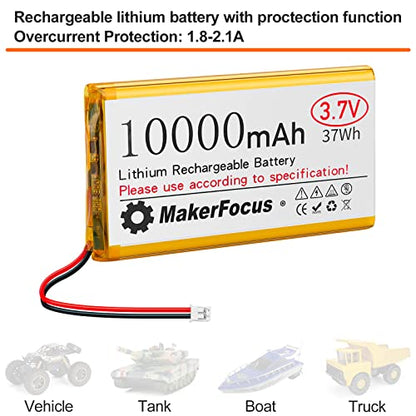

Overcurrent Protection: about 1.8-2.1A

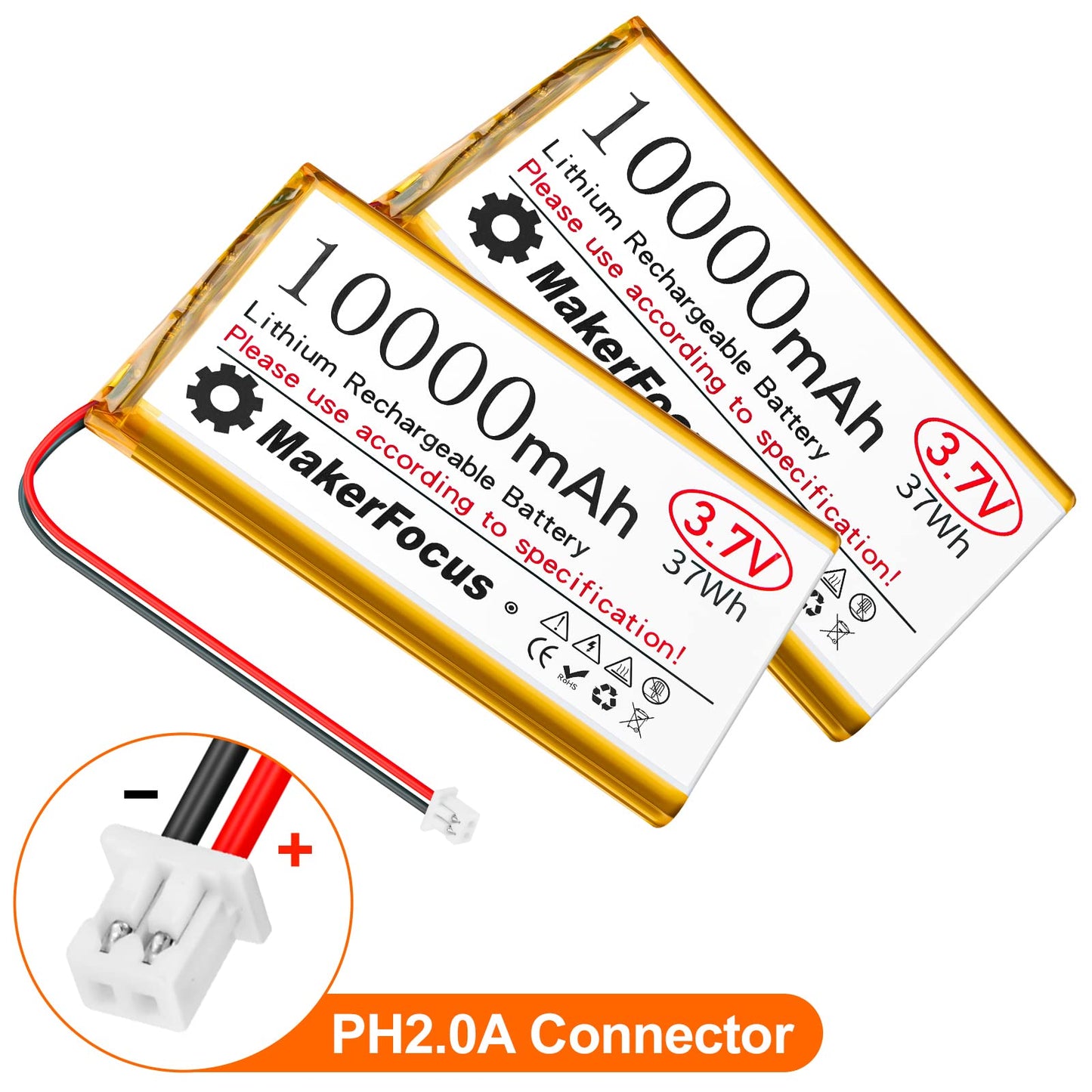

Type of Connector: PH2.0
Weight: 155g
Standard Charging Method:
Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≤ 0.05C.
Packing List:
1 * 10000mAh 3.7V 9065115 Lithium Rechargeable Battery
